Precast Deformed Concrete Planks Or Ground Bar Steel Truss Beam Used In Precast Reinforced Concrete Flooring

10000 Meters
MOQ
$0.37(>=10000 Meters)
Price
Precast Deformed Concrete Planks Or Ground Bar Steel Truss Beam Used In Precast Reinforced Concrete Flooring
Features Gallery Product Description Request A Quote
Features
Specifications
After-sale Service: Online Technical Support, Onsite Training
Project Solution Capability: Graphic Design, Total Solution For Projects
Model Number: TG001
Product Name: Factory Hot Sale Production Line Steel Flat Truss Tower
Steel Grade:: HRB400E CRB550
Surface Treatment:: BLACK
Girder Height:: 70mm,80mm,90mm
Diameter Of Lower Bar: 12mm,10mm,8mm,6mm
Diameter Of Upper Bar: 10mm,8mm,6mm
Girder Length: 1-12m
Girder Width: 80mm,90mm
Application: Prefabrication Of Concrete Planks
Name: Truss Girder
Basic Infomation
Model Number: TG001
Payment & Shipping Terms
Packaging Details: Lattice girder can be packed in bundles and then in pallet
Supply Ability: 100000 Meter/Meters per Month
Product Description

deformed or ground bar steel truss girder used in precast reinforced concrete floor

Truss Girder/Lattice are mainly used for the prefabrication of concrete planks, a medullar element in the Hallow Block floor

Slab System for constructing concrete slabs. Truss Girders have a triangular shape, are electro-welded and have three defo

-rmed longitudinal bars (one upper and two lower). They are joined by a smooth diagonal bar in a zig-zag pattern.

Specification

Specifications:

1. Top bar diameter : from 5-12mm
2. bottom bar diameter :from 5-12mm
3. Distributing bar diameter: from 4-10mm
4. bar length:from 3-12m

5. girder width:100-150mm
6. girder height: from 100-150mm

No.ItemDescription
1Top Steel Bar Sizeφ 6mm,φ 8mm, φ10mm, φ12mm, etc.
2Bottom Steel Bar Sizeφ 6mm,φ 8mm, φ10mm, φ12mm, etc.
3Cross Steel Bar Sizeφ 4mm, φ5mm, φ5.5mm, φ 6mm, φ7mm, φ8mm, etc.
4Base Plate SizeWidth: 576mm or 600mm, Thickness: 0.5/0.6mm, Galvanized Surface
5Truss Height70mm, 80mm, 90mm, 100mm, 110mm, 120mm, ..................270mm
6Surface TreatmentBlack, self colour
7StandardChina: JG/T 368-2012
Application

Applications:

1 Applied to precast slabs, pre-high-speed railway sleeper.

2 Used in many high-rise, ultra- high-rise steel buildings

3 Used for steel building, mezzanine floor of “LOFT”

4 The force applied to the complex, special-shaped structure, building

5 Used in-situ concrete structure(RC) buildings

6 Used in the construction of slope roof structure

Packaging & Shipping

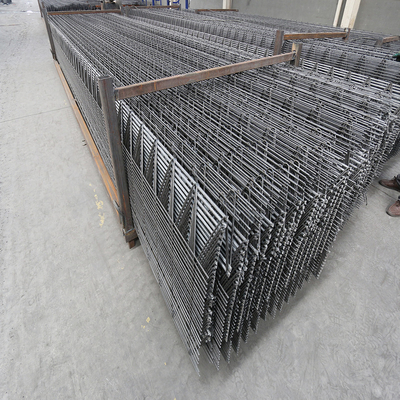

1. Lattice girder can be packed in bundles and then in wooden pallet

2. In general, one wooden pallet can load 1400-1600pcs

3. One 40ft container can fit about twenty wooden pallets.

Loading is very important for a mesh export Factory .Even though your product have a perfect quality,but if there is a problem with packing,all of your high quality products will not be proud.Not only should we consider the preservation of the goods, but also consider the convenient removal for the customer.That's what we've been working on for over a decade.The packing of the welded mesh products is our advantage.Many countries'
clients have cooperated with us so far because of this advantage.

Our Factory

Tianjin UAN Steel is a group of international economic entity, including affiliated enterprise.

Manufacture: TIANJIN TIANKANG METAL PRODUCT CO.,LTD.
Export Trading company : Tianjin UAN STEEL CO., LTD.
HK company: UAN STEEL CO., LIMITED.
Australia branch: UAN STEEL PTY LTD

UAN steel was established in 1999, it was one among the group of the manufacturer of researched & developed reinforcing welded wire mesh in China. With the tremendous reputation for quality and the support from the worldwide client, we have set up our first abroad branch and warehouse in Australia.

Over the past decade, with the indefatigable effort of the team, the annual output of all meshes product of the company has reached more than 200,000 tons. With no doubt, UANsteel is able to spearhead the competitive market and industry. Notwithstanding, UANsteel continuously excels with not only producing of reinforcing welded mesh and all kind of essential accessories (lattice girder, steel grating, fence post, plastic rebar spacer, rebar guard cap etc.) for the whole industry of construction projects. Moreover, the great commendable has been gained from the client of worldwide was the ability successful expanded the supply of full range woven and welded meshes with all kind of alloy materials available for your various requirements and application in the projects.

With the 19 years of great effort and development, UANsteel already owns a huge and systematic production organization platform. Our products have been successively awarded certification below;

ISO9001 (2000) and Switzerland SGS certificate;

ISO9001:2000 German tüv Swiss SGS

SAI certification-Australian

ACRS certification-Australian

Therefore, our products are qualified to the higher stage into the overseas market.

UAN, the symbol and the label of recognized & trusted authorized partner.
