Our company issituated in the portcity of Nantong,Jiangsu Province,China and neighbored to Shanghai.We have aland area of about 20000 square meters.Our main products include:FRP pultrusion profiles,pultrusion grating,molded grating,SMC and hand lay-up products.Our company insists four principles:Product outstanding,Good quality,Perfect service,Satisfied customer.We have passed ISO9001 quality certified.Our products are independently tested by worldwide well known agencies with fire,physical,mechanical,electrical properties,such as Omega,SGS,Shanghai FRP institute.
Oour Advantages
(1)All-Thread FRP Bolt:
The rod is threaded over the whole length, i.e. "All-Thread";
(2)High Corrosion Resistance:
The base materials used by the bolt are durable materials, and they are molded through the composite process. The life span is up to 100 years. They can be used as permanent support materials;
(3)High Tensile Strength:
The load is approximately double that of a steel bar with the same diameter;
(4)Low Weight:
The weight is only 1/4 that of a steel bar with the same diameter. Therefore, the labor intensity is greatly reduced, and the transportation cost is reduced at the same time;
(5)Anti-static:
It has no electrical conductivity, and no sparks will be produced when being cut. It is particularly suitable for high gas zones;
(6)Non-flammable:
It is non-flammable and has high thermal isolation;
(7)Cuttability:
It avoids damages to cutter heads, and does not delay excavation;

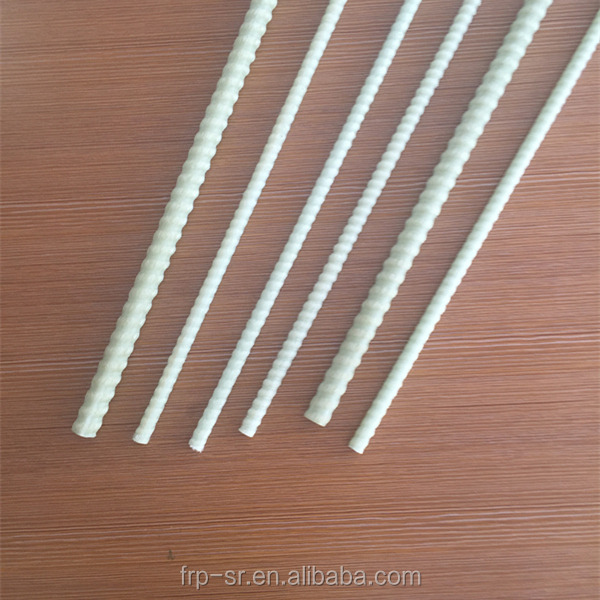

GFRP Rebar Technical Data
GFRP Rebar Technical Data (General) | ||||||||||||||||||
Diameter(mm) | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 34 | 36 | 40 |
Cross section(mm2) | 7 | 12 | 28 | 50 | 73 | 103 | 134 | 180 | 248 | 278 | 355 | 478 | 590 | 671 | 740 | 857 | 961 | 1190 |
Density(g/cm3) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 |
Weight(g/m) | 18 | 32 | 51 | 98 | 150 | 210 | 275 | 388 | 485 | 570 | 700 | 970 | 1195 | 1350 | 1520 | 1800 | 2044 | 2380 |
Ultimate tensile(KN) | 13.5 | 18 | 36 | 54 | 72 | 99 | 117 | 149 | 189 | 225 | 270 | 342 | 432 | 450 | 504 | 540 | 585 | 640 |
Ultimate tensilestrength(Mpa) | 1900 | 1500 | 1280 | 1080 | 980 | 870 | 764 | 752 | 744 | 716 | 695 | 675 | 702 | 637 | 626 | 595 | 575 | 509 |
Ultimate shear strength(Mpa) | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 | >150 |
E-modulus(GPa) | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 | >40 |
