Home /Products/Fiberglass Reinforcing Bars/walkway fiberglass reinforced plastic drain grate/cheap price plastic grating/pvc flooring frp grate for building

walkway fiberglass reinforced plastic drain grate/cheap price plastic grating/pvc flooring frp grate for building

1 Square Meter
MOQ
walkway fiberglass reinforced plastic drain grate/cheap price plastic grating/pvc flooring frp grate for building
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SIA-38
Application: Walkway, Industry
Surface Treatment: Smooth
Technique: Molded
Dimensions: Specification Sheet
Material: Fiberglass
Color: Red, White, Grey, Green And Yellow
Certificate: ISO9001:2008, CE, SGS
Thickness: 13-70mm
Bar Thikness: 6.0/5.0, 7.0/5.0, 6.5/5.0 And So On
Weight: 12.3-30kg
Function: Fireproof, Anti Corrosion
Basic Infomation
Certification: ISO9001:2008, CE, SGS
Model Number: SIA-38
Payment & Shipping Terms
Packaging Details: 1. Kraft paper with pp for Samples 2. bundle, Wooden Pallet or wooden case
Supply Ability: 30000 Square Meter/Square Meters per Month
Product Description
Product Description

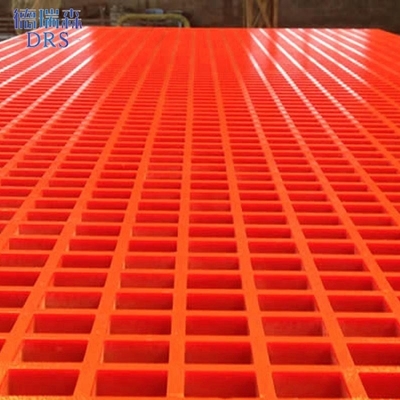

fiberglass reinforced plastic drain grate/cheap frp grating price/pvc floor plastic grating for building


concave, gritted surface
anti skid
mini/micro mesh surface
Could prevent objects from falling through.
Solid cover
Anti skid and prevent liquid leaking and gas volatilizing.
smooth surface
It can be used for decoration such as doors, partitions, ceilings, etc.

Parameters

Type
fiberglass reinforced plastic drain grate/cheap frp grating price
Material
ECR Glass Fiber + Resin  (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)
Mesh Size
38*38*38mm，40*40*40mm, etc. can be customized (pls check detail as below form)
Color
According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
Surface
Gritted,  Smooth, Concave, Solid Top Covered

Anti-Fire/Corrosion/UV

Light Weight/High Strength

Safety/Easy Installation

Size-Molded Grating

Mesh Size(mm)

Thickness (mm)

Bar Thickness(mm)

Standard Panel Size(mm)

38x38

13

6.0/5.0

1220x3660,1220x4000,1220x2440,921x3055

14

6.0/5.0

1220x3660,1220x4000,1220x2440,921x3055

15

6.0/5.0

1220x3660,1220x4000,1220x2440

20

6.0/5.0

1220x3660,1220x4000,1524x4010,997x3012

25

6.5/5.0

1220x3660,1226x4010,1524x4000,1530x4010,1997x3012

30

6.5/5.0

1220x3660,1220x4010,1524x4010,921x3055

38

7.0/5.0

1220x3660,1220x4010,2100x4240,998x4010,1220x2440

50

9.5/7.5

1220x4010,1220x3666,1230x4010,1220x2440,921x3055

60

10.5/8.5

1230x4010

70

11.0/9.0

1230x4010

40x40

25

7.0/5.0

1007x3007,1007x4007,1247x4047,1527x4047

30

7.0/5.0

1527x4047,1007x3007,1247x4047

38

7.0/5.0

1527x4047,1247x4047,1007x3007,1007x4047

40

7.0/5.0

1527x4047,1007x3007,1007x4047,1247x4047

50x50

15

6.0/5.0

1228x4020,1220x3660,1220x2440

40

6.8/5.0

1787x4530,1225x4530

25

7.0/6.0

1220x3660,1226x4020,1220x2440,915x3050

50

8.0/6.0

1524x4000,1220x3660,1220x2440,1220x4000

83x83

38

7.0/5.0

1007x4007,1007x3007,1007x4255

40

7.0/5.0

1007x4007,1007x3007,1007x4255

13x13/40x40

micro mesh

25

6.5/4.5/5.0

1247x4047,1007x3007,1007x4047,1530x4047

30

6.5/4.5/5.0

1527x4047,1247x4047,1007x3007,1007x4047

38

6.5/4.5/5.0

1527x4047,1247x4047,1007x3007,1007x4047

19x19/38x38

mini mesh

25

6.5/5.0

1220x3660,1220x2440,921x3055,1226x4007,1268x4007

30

6.5/5.0

1220x3660,1220x2440,921x3055,1220x4000,1530x4047

38

6.5/5.0

1220x3660,1220x2440,921x3055,1220x4000,1226x4010

20x20/40x40

mini mesh

14

6.5/5.0

1007x3007,1247x4047

22

6.5/5.0

1527x4047,1007x3007,1247x4047

25

6.5/5.0

1527x4047,1247x4047

30

7.0/5.0

1527x4047,1007x3007,1007x4047,1247x4047

38

7.0/5.0

1527x4047,1007x3007,1007x4047,1247x4047

40

7.0/5.0

1527x4047,1007x3007,1007x4047,1247x4047

25x25/50x50

mini mesh

50

8.0/6.0

1532x4020

26x26/52x52

mini mesh

30

7.0/6.0

1530x4000,1532x4050

38

6.0/5.0

1517x4015

25x50

38

11.0/9.0

1220x1835

50

12.0/9.0

1220x1835

25x100

25

7.0/5.0

1220x3660,915x3050

38x100

38

8.0/6.0

1226x3665,1530x4047,921x3050

25x152

38

8.0/6.5

1220x3660,1220x2440,1220x4124,921x3050

38x152

38

8.0/6.0

1220x3660,1220x2440,915x3050

Application-Grating

Walkway / Platform Grating

Car Wash Floor Drain Grating

Stair Grating

Farm & Breed Industry Floor Grating

Decorative Ceiling Roofing Grating

Tree Protective Grating

Fence Grating

Drain Grating

Marine Industry Platform Grating
