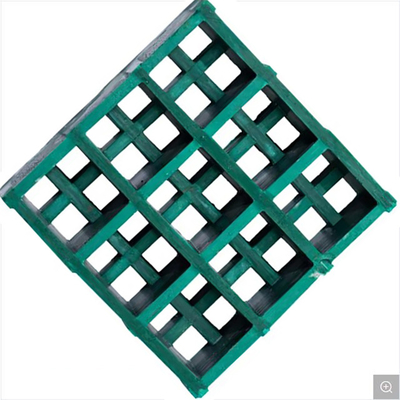

Around vessels highly corrosive resistance to organic solvents fiberglass grating grp grate molded frp grating for around highly corrosive vessels

50.0 square meters
MOQ
Around vessels highly corrosive resistance to organic solvents fiberglass grating grp grate molded frp grating for around highly corrosive vessels
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Dwb724
Application: Around Highly Corrosive Vessels
Surface Treatment: Meniscus, Sand Grit, Grinded
Technique: Molded
Processing Service: Moulding, Welding, Punching, Cutting
Product Name: Resistance To Organic Solvents Fiberglass Grating Molded Frp Grating
Material: Fiberglas Reinforced Plastic
Color: Black\gray\white\yellow\red\green
Keywords: Molded Frp Grating
Length: Produce
Type: Fiberglass Reinforced Plastic Grating
Basic Infomation
Model Number: dwb724
Payment & Shipping Terms
Packaging Details: Resistance to organic solvents fiberglass grating grp grate molded frp grating for Around highly corrosive vessels
Supply Ability: 10000 Meter/Meters per Month
Product Description
Functions

Resistance to organic solvents fiberglass grating grp grate molded frp grating for Around highly corrosive vessels

Production Flow



Certifications



parameteres
RESIN CODE DESCRIPTION RESION BASE CORROSION RESISTANCE FLAME SPREAD RATING
VE CHEMICAL PROOF EXTRA FIRE RETARDANT VINYL ESTER EXCELLENT

CLASS 1

25 OR LESS
VEM CHEMICAL PROOF EXTRA FIRE RETARDANT VINYL ESTER EXCELLENT

CLASS 1

10 OR LESS
ISO INDUSTRIAL GRADE FIRE RETARDANT ISOPHTHALIC VERY GOOD

CLASS 1

25 OR LESS
ISOM FOOD GRADE FIRE RETARDANT ISOPHTHALIC VERY GOOD

CLASS 1

25 OR LESS
OR ARCHITECTUAL GRADE FIRE RETARDANT ORTHOPHTHALIC GOOD

CLASS 1

25 OR LESS
Our Services

L type clips
This lighter duty clip should be specified to hold one load bar to the support for lighter duty loads. It is available for molded and pultruded fiberglass gratings.
M type clips
M clips or saddle clips clamp 2 fiberglass grating load bars to the support. This provides excellent holding capability and because of this, are recommended for stair treads and most molded and pultruded fiberglass gratings.
C type clips
C clips were specifically designed to tie two panels of molded fiberglass gratings together to minimize differential defections when their joints fall between supports. C clips are also used in fiberglass grating leg systems for panel abutments. Lower nut is welded to clip so installation is from top side of fiberglass grating floor
G type clips
When drilling the support member has to be avoided, G clips offer the solution. The lower jaw of the clip grips the support flange when the bolt is torqued. A heavier top clip then completes the assembly to carry the loads. Providing excellent bidirectional holding capability for molded square mesh fiberglass grating.
W type clips
This 1 ½” diameter fastener is used for holding down plates and covered fiberglass gratings. The W clip’s recessed center allows the fastener to sit flush with this ADA compliant (< ¼” high) hold down clip.
J type clip
Company Information

Sino Composite Structures Co.,Ltd offersa vast array of FRP, CFRP, Metal products and technical supporting. We're committed to providing customers with consistently QUICK, STABLE and ACCURARE service. With more than 20 years experience in composite products industry, we always adhere to providing customer with continuously high quality, on time delivery, competitive price, and are dedicated to make improvement in every aspect of our operations.

We have high quality FRP products, which can be used in engineering, bridge, cooling tower cover, etc

With high reputation in market, we've made exporting to Europe, the Middle East, Southeast Asia, Africa and some other parts in the world.

Packaging & Shipping



FAQ
  • Q: What’s FRP?
    A: Fiber Reinforced Polymer (FRP) is a composite material made of a polymer matrix reinforced with fibers. The fibres are usually glass, carbon, aramid, or basalt. Rarely, other fibres such as paper or wood or asbestos have been used. The polymer is usually an epoxy, vinylester or polyester thermosetting plastic, and phenol formaldehyde resins are still in use. FRPs are commonly used in the aerospace, automotive, marine, construction industries and ballistic armor.



  • Q: How can you guarantee your product quality?
    A: 100% of our products will be tested before delivery. To control quality, we are using high quality material from high quality supplier.



  • Q: Are you a trading company or a manufacturing factory?
    A:We are a manufacturing factory with export qualifications. Our factory is one of the Best FRP products manufacturer in China since 1979.We have FRP products of high quality and various kinds.



  • Q: I am interested in your products, could I get sample for free?
    A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is kindly offering your shipping account.



  •  Can you do the design for us?
    A: Yes. With experienced teams in fiberglass product design and manufacturing, we can provide customized shape,dimension, colors service.
